Auto AC conditioning compressor for Nissan Patrol 92600VB005 DS80039

1.Basic information

Model: 92600VB005 (original part number, Nissan worldwide).
Applicable model: Nissan Tule Y61 (2004-2012 model year, diesel/gasoline version universal).
Compressor type: Piston type constant displacement compressor (traditional mechanical clutch control).

2.Performance parameter

Refrigerant compatibility: R134a (standard filling capacity: 550±50g).
Working voltage: 12V DC, maximum current 12A (with the original 40A fuse).
Cooling power: 7,200 BTU/h (about 2.1kW, suitable for rapid cooling in 7 large Spaces).
Maximum speed: 6,000 rpm (recommended pulley drive ratio 1:1.2).

3.Structural design

Material: Aluminum alloy shell + chrome plated steel piston (high temperature resistance to 150°C).
Interface specifications: high pressure outlet diameter 10mm, low pressure inlet diameter 12mm (standard O-ring seal).
Weight: 4.8kg (lightweight design, 15% less than the previous generation).

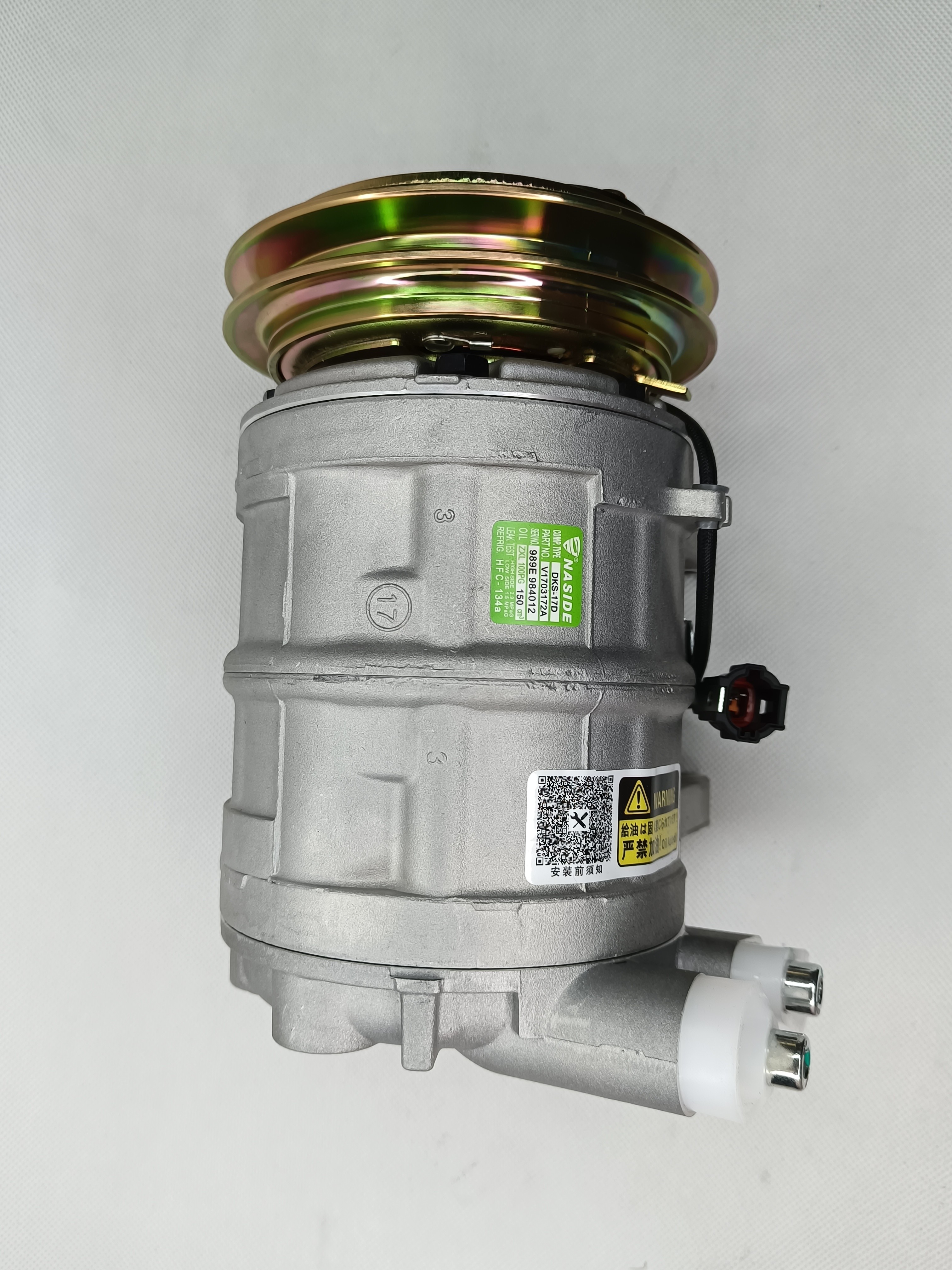

Below is a clear picture of our compressor:

    Founded in 2003, the company is located in Guangzhou, China, one of the world's most prosperous production and sales bases for automobile vehicles and parts.
    The company is a set of automotive air conditioning compression R & D, production and sales in one of the enterprises, has been committed to the research of Japan Denso, Sanelectric, Valeo, Jack Cel, Konecco, Panasonic and Mitsubishi compressor structure and working principle, after a lot of anatomy and testing, has its own mature technical elite team and data system, Through the mature shell die-casting and rough, finishing foundation with a full range of parts testing and testing, coupled with the overall performance of the whole machine and durable running test, the product to OEM matching factory standards, appearance and every detail is consistent with the original to form its own technical core competitiveness.
    The compressor produced by the Japanese NASIDE brand has reliable quality, stable operation and ultra-low noise, and enjoys the reputation of "starting from the original factory, better than the original factory" in the industry, and has been recognized by customers with professional and good after-sales service. The products are exported to Europe, the United States, the Middle East, Africa and Southeast Asia markets.
    The company adhering to the original factory is better than the original "development concept, and constantly improve and improve products
Durable properties. Now is the time to spread your wings and fight the sky! We are willing to work hand in hand with all the elites in the industry to strive for higher positioning and development goals! Realize the Made in China dream!
