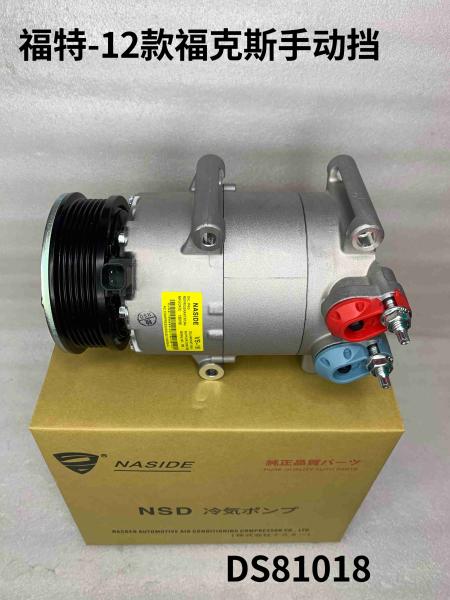

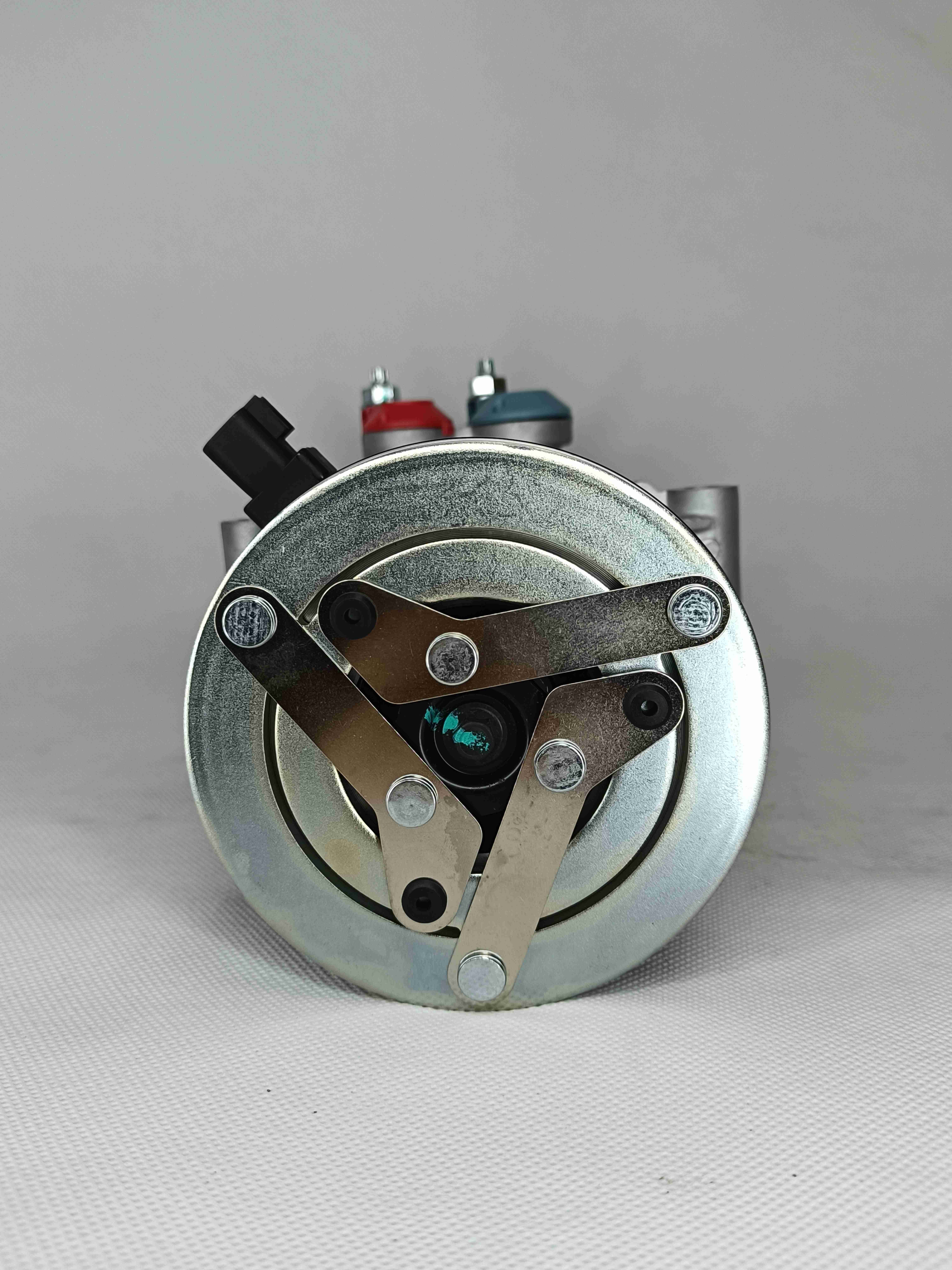

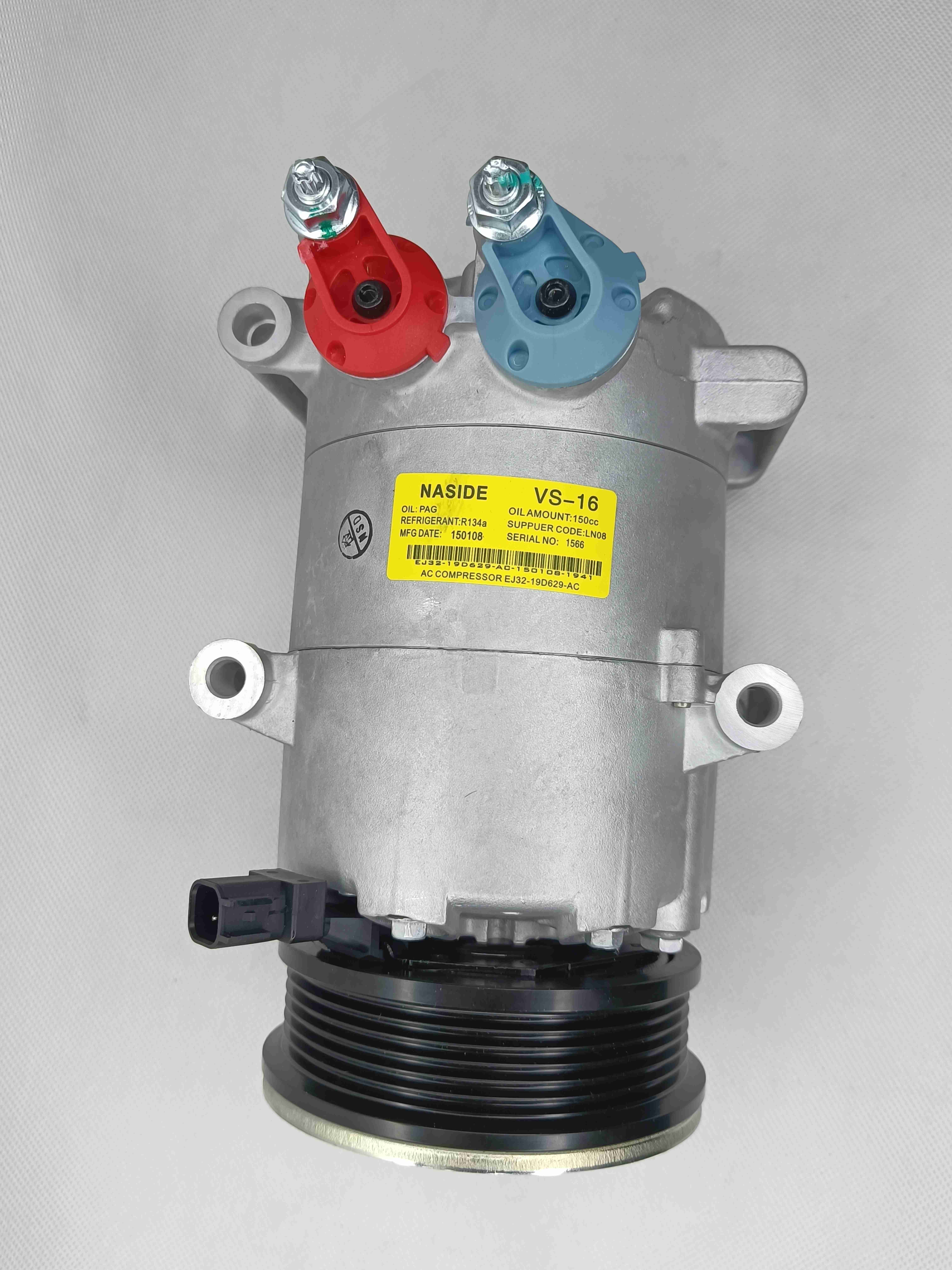

Auto Ac Conditioning Compressor For Ford Focus OEM AV6119D629C2C Compressor Assembly

1.Mechanical parameters

Displacement: 2.53-3.8L/rev (Depending on the model)
Maximum pressure: 4.2 MPa (compressor outlet)
Working speed: 1,200-6,000 rpm (synchronized with the engine speed)

2.Electrical characteristics

Working voltage: 12V DC (electromagnetic clutch)
Power consumption: The clutch coil is approximately 20-30W, and the total power during operation is about 1.2kW
Clutch resistance: 2.5-3.5Ω (Regular detection is required to prevent overheating)

3.Installation location

It is located in the engine compartment, close to the right side of the cylinder block, and fixed by a bracket. The belt tension and oil leakage need to be checked regularly.

4.Lubrication and Maintenance

Lubricating oil type: PAG 46# oil (R134a system) or EO 46# oil (R1234yf system), which must be compatible with the refrigerant.
Replacement cycle: It is recommended to replace the compressor and pipelines every 4 to 5 years or 100,000 kilometers to prevent sludge accumulation.

    Founded in 2003, the company is located in Guangzhou, China, one of the world's most prosperous production and sales bases for automobile vehicles and parts.
    The company is a set of automotive air conditioning compression R & D, production and sales in one of the enterprises, has been committed to the research of Japan Denso, Sanelectric, Valeo, Jack Cel, Konecco, Panasonic and Mitsubishi compressor structure and working principle, after a lot of anatomy and testing, has its own mature technical elite team and data system, Through the mature shell die-casting and rough, finishing foundation with a full range of parts testing and testing, coupled with the overall performance of the whole machine and durable running test, the product to OEM matching factory standards, appearance and every detail is consistent with the original to form its own technical core competitiveness.
    The compressor produced by the Japanese NASIDE brand has reliable quality, stable operation and ultra-low noise, and enjoys the reputation of "starting from the original factory, better than the original factory" in the industry, and has been recognized by customers with professional and good after-sales service. The products are exported to Europe, the United States, the Middle East, Africa and Southeast Asia markets.
    The company adhering to the original factory is better than the original "development concept, and constantly improve and improve products
Durable properties. Now is the time to spread your wings and fight the sky! We are willing to work hand in hand with all the elites in the industry to strive for higher positioning and development goals! Realize the Made in China dream!
